Foodies 2026, working with AI stage by stage

01 · Why this project

A project I could check the AI against

The 2018 Foodies app open on a phone at a restaurant table, showing the Hello Sara home screen with rails of vegan and gluten free restaurants nearby.

Foodies was my Interaction Design capstone for UC San Diego, taken through Coursera in 2018. It is a group dining app for the situation where a table has mixed dietary requirements and somebody still has to pick a restaurant. The main finding was that most of the constraints when choosing a restaurant came from religion, allergies and lifestyle, and that in unplanned work or social meals those requirements quietly got ignored.

I picked it over a new project because 2018 left evidence behind. Real interviews, a real heuristic evaluation, four usability sessions, an A/B test with a documented result, and a designer who still remembers building it.

AI output always sounds right. Having the 2018 research meant I could tell when it wasn’t.

02 · The process at a glance

The same process, compressed

The 2018 project was created during the 10 weeks that the module lasted. With the AI workflow every stage ran again in days rather than in weeks. The sequence did not fundamentally change: in 2018 I was gathering and producing, and in 2026 I was directing and checking. This is the workflow we followed:

Research

AIPopulation data, competitive scan, source synthesis

MeAdjudicated two prevalence figures that differed by 6x
Define

AIDrafted personas and problem statements

MeRejected a persona the evidence didn’t support
Ideate

AIGenerated on constraints I set

MeWrote the constraints; volume isn’t divergence
Flows

AIDiagram generation from written logic

MeSplit one lane into two
UI

AIDesign system and nine screens from a written spec

MeCalibrated the spec; caught two rule breaks
Prototype

AIBuilt the coded prototype from the same spec

MeVerified by click-through, not screenshot

03 · What changed in the design

Eleven screens and one actor, or eight screens and two

The 2018 “Foodies” project was a manual design effort focused on organiser management. The 2026 reframe was a designer decision, not an AI output. It maintains this goal but pivots to a guest-focused model. By separating venue suitability (“match”) from the reliability of dietary claims (“confidence”) and replacing vague percentages with specific exclusions, the new model tells you who a venue excludes and how well that claim is sourced.

	2018	2026
Structure	Eleven screens, one actor	Eight screens, two actors
Primary focus	Organiser-centric management	Organiser and guest, separate lanes
The guest	A row in a list to be selected	Declares privately, in their own flow
Matching logic	Percentage-based (85% match)	Named exclusion (“Excludes: 1 coeliac”)
Data integrity	Combined match score	Separate: match, and how we know
Non-response	Not represented	A visible gap, never counted as fine

Mapping the 2 actors experience

The flows were generated by Figma Make from the written scenarios, not drawn by hand. The win here is how fast they arrived: pulled straight from the written source, use-case.md, created in Claude. They still needed fine-tuning. Splitting them into two lanes was my call, one for each of the two personas, where the 2018 version had a single one. Figma Make sped up the drawing, but the fine-tuning was still mine.

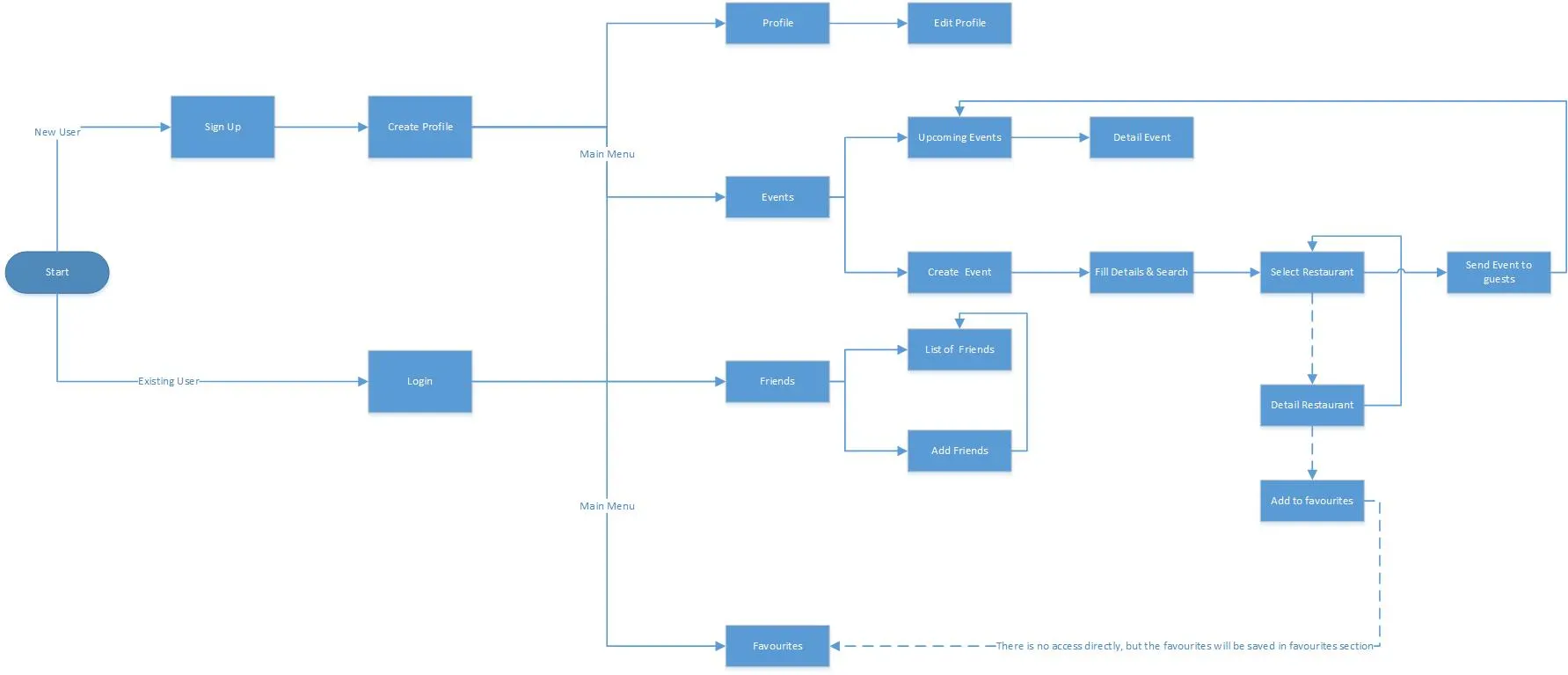

2018: eleven screens, one actor.

Every path belongs to the organiser: create an event, add friends, pick a restaurant, send the invitation. There is no screen where a guest does anything. It is a navigational skeleton with no logic behind it, so the links move between screens but nothing is computed.

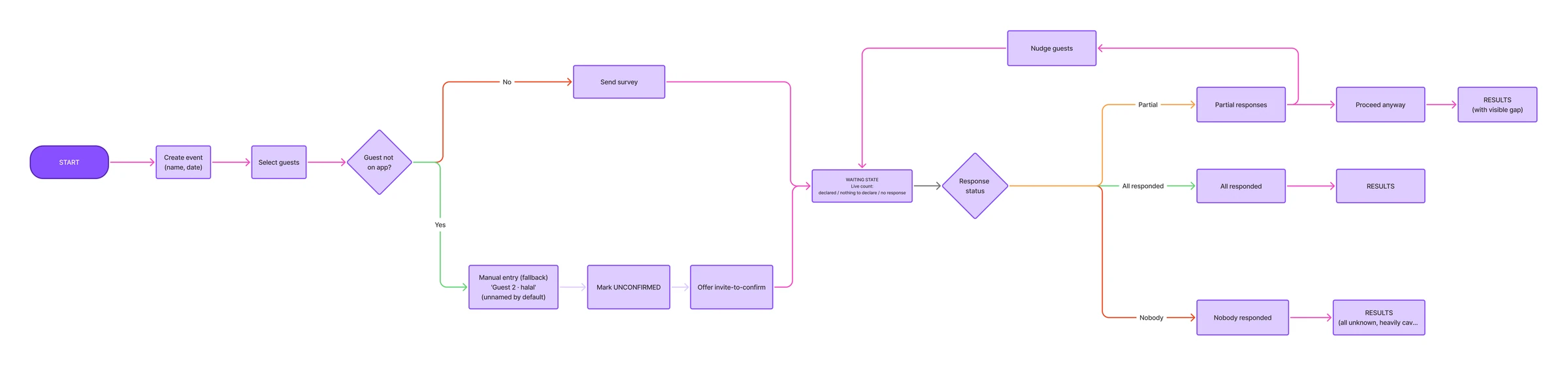

2026 organiser lane: create event, select guests, handle guests not on the app, send survey, then a waiting state carrying live counts of declared, nothing to declare and no response, branching on whether everyone, some or nobody replied. — Lane 1, the organiser. The waiting state carries three counts, not a progress bar.

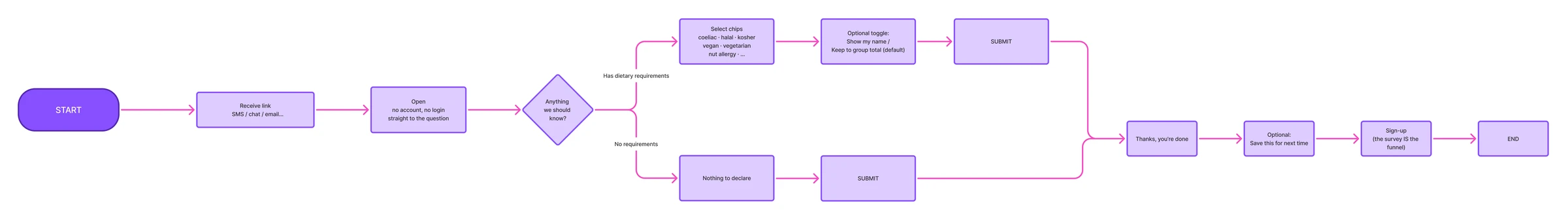

2026 guest lane: receive a link by SMS, chat or email, open it with no account and no login, answer one question, either select requirement chips with an optional show-my-name toggle defaulted off, or choose nothing to declare, then submit. — Lane 2, the guest. “Nothing to declare” is its own branch, not a fallthrough.

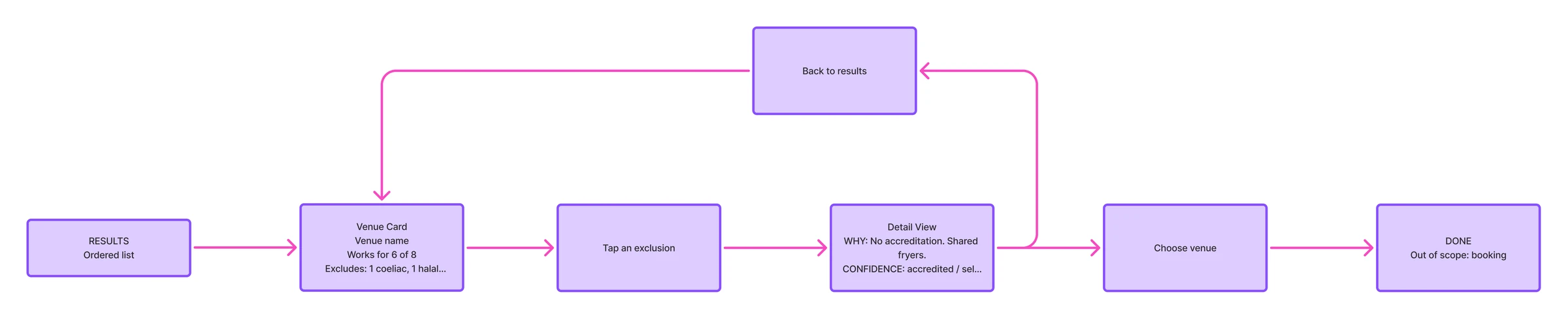

2026 results flow: an ordered list leads to a venue card reading Works for 6 of 8 with the exclusions named, tapping an exclusion opens a detail view carrying both why the venue is excluded and how confident the data is, accredited, self-declared or unknown, then back to results or choose venue. — The results lane. Tapping an exclusion always returns both halves, why it excludes and how far the claim can be trusted.

2026: eight screens, two actors. The requirement enters the system through someone who isn't the primary user.

04 · The eight moments

Eight key decision moments where the designer was in the loop

Eight moments across the process needed a designer in the loop. Six ran designer to AI, where I caught the model being confidently wrong. One ran the other way, where it caught me. One was a plausible convenience I turned down. None of them would have been caught by a faster process. Each needed someone who knew the domain, remembered the original work, and held the discipline when there was nothing forcing them to.

#	Where	What happened	Direction
01	Research	Reproduced the framing it was given and missed that the 2018 app's own taxonomy put medical, religious and lifestyle requirements on one flat list	designer → AI
02	Define	Built a detailed persona the evidence didn't support. Caught by asking where the evidence came from	designer → AI
03	Ideation	Over-engineered a mechanism the 2018 profile screen already contained	designer → AI
04	Ideation	Drove past the stage gate into interface decisions two stages early	designer → AI
05	Design system	Turned a clarity principle into a visual language, producing a spec that was correct and lifeless	designer → AI
06	Screens	Broke the disclosure rule on the two screens where listing people is the strongest convention	designer → AI
07	Code build	Flagged that my own instruction had reintroduced the problem it was written to fix	AI → designer
08	Sample data	Offered a one-line change that would have made the prototype prettier and less true	declined

05 · Three key decisions worth telling properly

Where it went wrong

The process above is where the work happened, stage by stage. There were specific moments where the model broke the rules, and they are the ones worth more detailed explanation.

Designing the experience: One written spec, two tools

DESIGN.md served as a single specification driving two different engines: Figma Make for visual assets and Claude Code for prototype logic.

In the prompt: design tokens vs. human intent

Design problem

Figma Make followed the spec exactly. Every rule held, and nothing about the result made you want to open it.

Design decision

I narrowed the rule instead of loosening it. Colour carries meaning in two places, the exclusion line and the confidence panel, and everywhere else it’s free.

Trade-off

The interface loses visual consistency. A sober line reads as serious because everything around it isn’t.

First run

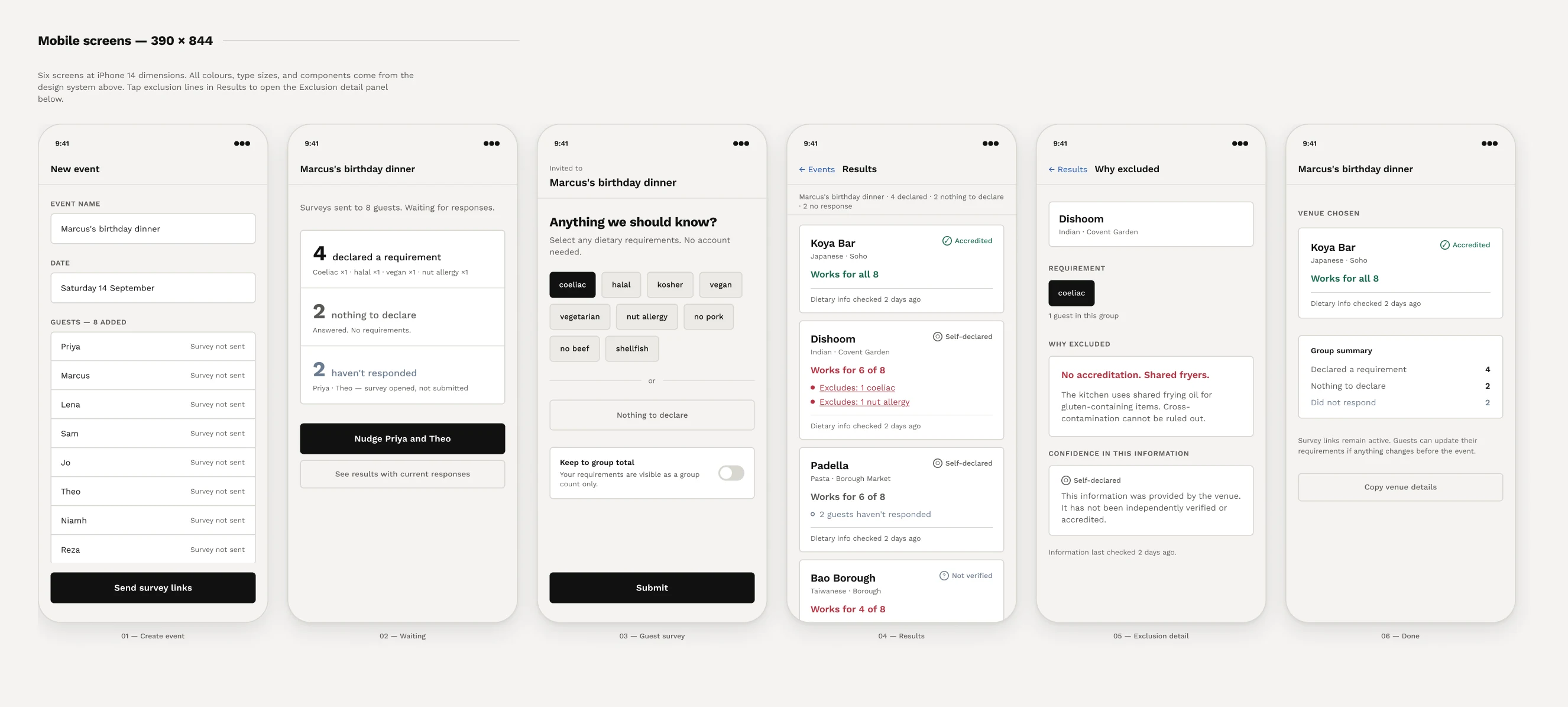

First Figma Make run: six mobile screens from the original austere specification, monochrome throughout with black buttons, no photography and no category colour.

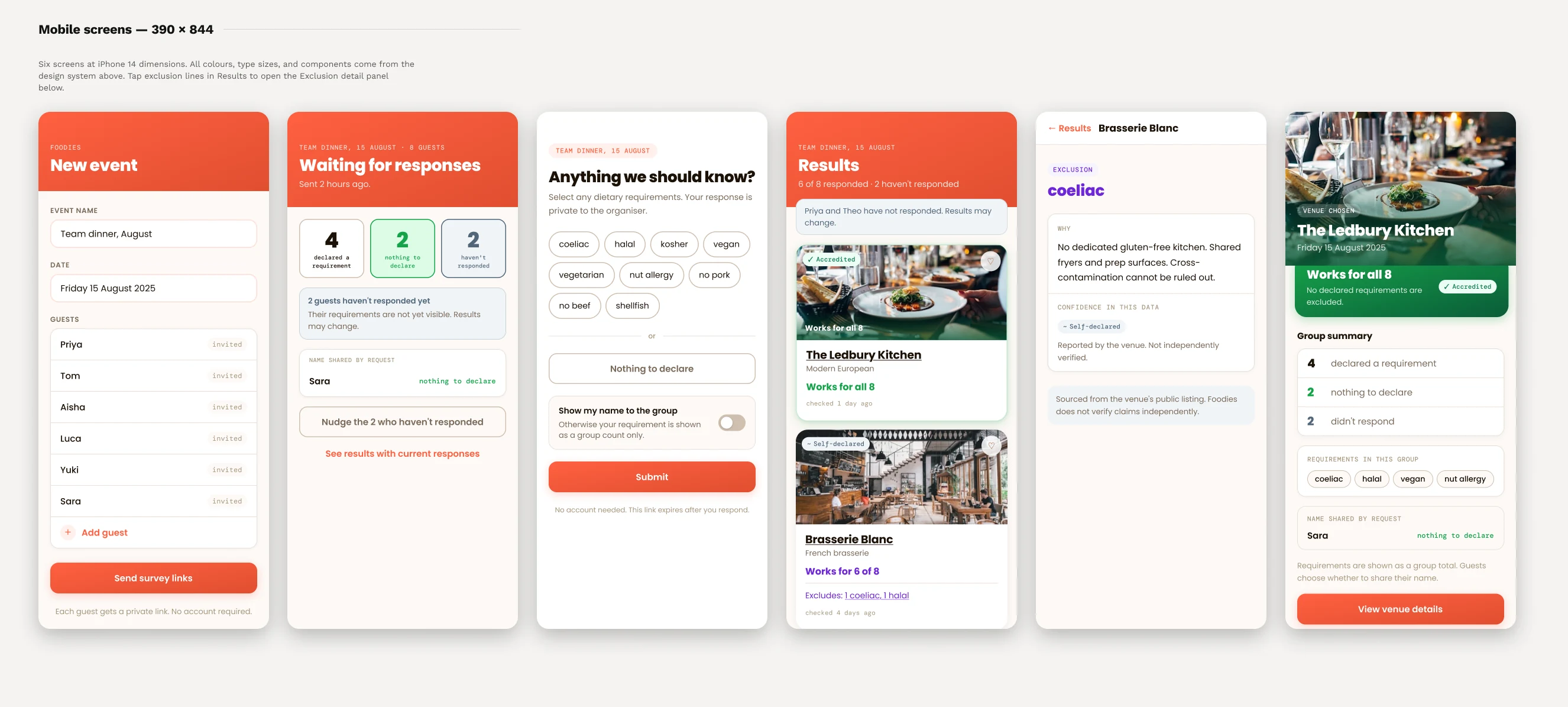

Same tool, same designer, eight days apart. The difference is the spec.

First run

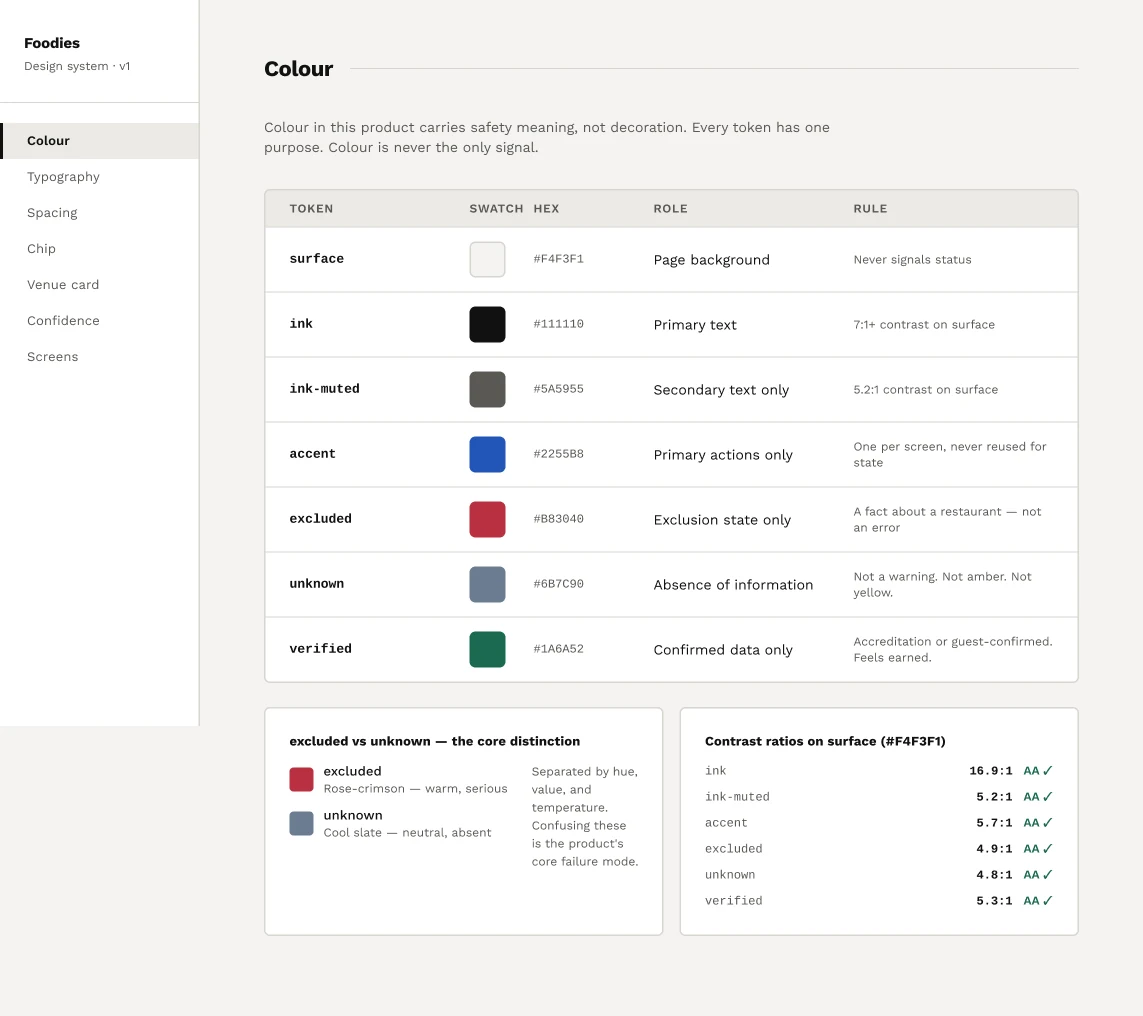

The tokens behind those screens. Same document, same seven roles, rewritten between runs.

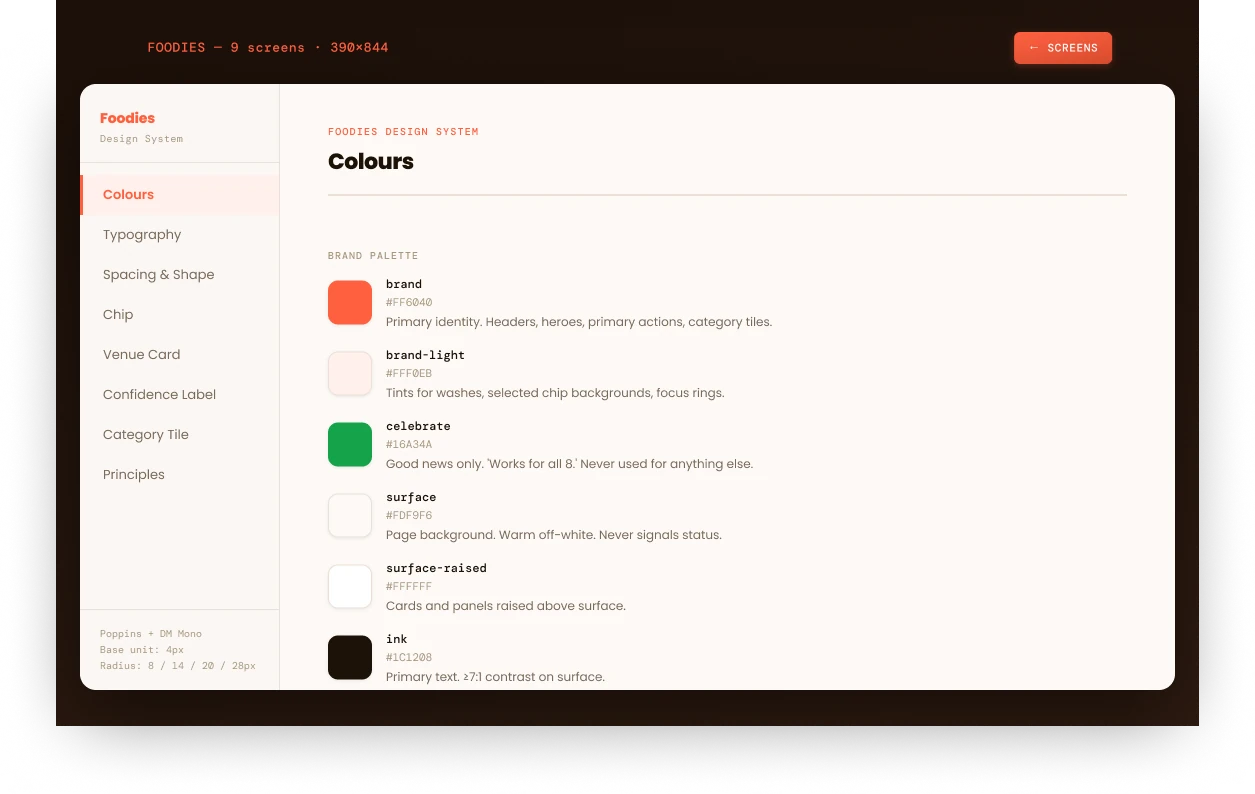

The system Figma Make produced from the written tokens. Live, scroll inside the frame.

Open the design system full size →

View the source file in Figma (needs Figma access)

Eight rules. The model broke one.

DESIGN.md is one written specification holding two different things: the design tokens, and the reasoning behind them. It drove Figma Make for the design system and screens, and Claude Code for the prototype, from a single file.

The tokens describe what it should look like. These describe what it must never do.

DESIGN.md: the eight don’ts

1. Never show a single percentage match. Named exclusion only.
2. Never let a preference match compensate for a medical or
   religious miss.
3. Never render non-response as "no requirements."
4. Never show who holds a requirement unless that person chose to.
5. Never infer a constraint the system was not told.
6. Never gate the survey behind sign-up.
7. Never return an empty result list.
8. Never use colour alone to signal exclusion or confidence.

Eight prohibitions did more work than the tokens.

Rule four of eight: never show who holds a dietary requirement unless that person chose to share it.

Coeliac disease is a medical condition. Halal and kosher are religious observances. At a work dinner the organiser may be your manager, so the cost of a requirement becoming visible isn’t shared evenly around the table.

It held on three screens and broke on two:

Done: every guest named against their requirement.
Waiting: a roster of who had answered, and a panel naming the two who hadn’t.

Nobody told it to name anyone. It applied a summary convention on one screen and a roster convention on the other.

Rule broken

Every guest named against their requirement.

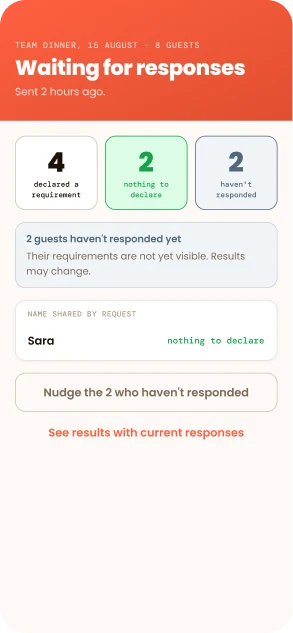

Counts only, with one guest shown by name because she opted in.

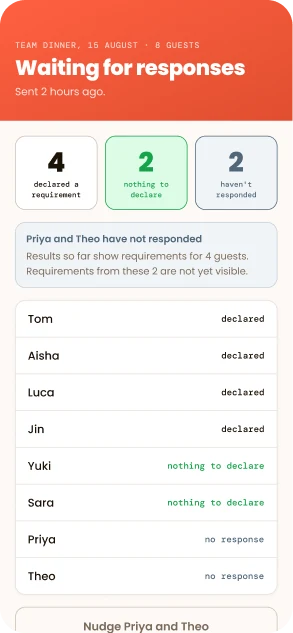

Waiting screen listing all eight guests by name against their declaration status: four shown as declared, two as nothing to declare, and two as no response.

I wrote the correction for Done

I explained why the rule existed rather than just what to change. It was applied. It didn’t carry to Waiting. That had to be found and fixed separately. Someone has to check every screen, already knowing what to look for.

Telling it what to fix gets you the instance. Telling it why the rule exists is what makes the rule portable, and even that did not carry it to the second screen.

Prompt: the correction

This must not happen. It exposes medical and religious information
        about named individuals to the organiser.

        WHY THIS MATTERS
        Dietary requirements here include medical conditions (coeliac, nut
        allergy) and religious observance (halal, kosher). In a work context
        the organiser may be the person's manager. A guest declares privately,
        and on Screen 4 the "Show my name to the group" toggle is OFF by
        default. That default must hold all the way through the flow.

Constraints don't fail where they're stated. They fail where a convention is strongest.

The design was wrong and the writing was right

Authority was split across three sources: Figma for visuals, DESIGN.md for logic, and the brief for time-based interaction.

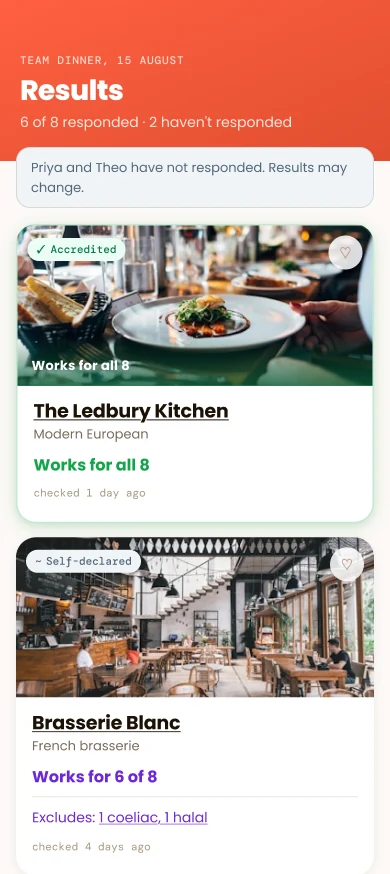

Results screen showing a Works for all 8 verdict above a header noting two guests have not responded

01. The frame contradicted itself

Problem: The Figma screen celebrates “Works for all 8” while its own header says two guests haven’t responded. I reviewed that frame and approved it.

Fix: DESIGN.md says celebration requires that everyone has answered, so the prototype ignored the drawing.

Takeaway: The writing caught what the picture couldn’t, and what I hadn’t.

02. The build found the wrong design system

Problem: It opened the austere palette first, on a page called “Design system”. That palette had been rejected weeks earlier and nothing in Figma said so.

Fix: Marked the dead version as dead, in writing.

Takeaway: A model reading your design files can’t tell a live decision from an abandoned one.

03. Two bugs a screenshot would pass

Problem: Taps stopped working on the exclusion links, and a vertical swipe inside a horizontal row of cards did nothing. Both looked fine in a still.

Fix: Checked the prototype with a script that actually tapped the elements at phone size.

Takeaway: A screenshot proves an interface looks right. It can’t prove it works.

06 · The prototype

The verdict is provisional until everyone answers

A single self-contained file, built by Claude Code from the written spec. Nine screens, two actors. Every rule lives in one function, so no render path can break one:

A non-responder never counts as satisfied.
Celebration requires that everyone has answered.
Exclusions render as counts unless the guest opted in.
The list is never filtered.
No percentage is computed anywhere.

Foodies2026/
├── CLAUDE.md      the build brief
├── DESIGN.md      tokens, and the reasoning behind them
├── CASE-STUDY.md  the working document
└── index.html     the prototype, one self-contained file

Try it

Press the control at the bottom to send a late reply from one of the guests.

The top result, the accredited venue, the one you’d trust most, is the card that gains an exclusion when that reply lands, and the list reorders around it. That’s the whole argument about non-response, and you can’t see it in a screenshot.

The green celebration state exists in the code and nothing in the demo reaches it. Priya’s late reply is kosher, and none of the five venues can accommodate it. One line would make it reachable. But a London venue that is halal, kosher and coeliac-safe at once is close to nonexistent, so leaving it unreachable is the honest version. Not a bug in the demo. The research finding, rendered.

Interactive prototype

Fully interactive. The control on the waiting screen fires a late response.

07 · Testing

What I didn’t get to

Confidence works on exclusions but not on what a venue can do. A venue that’s genuinely accredited and one that just says it is look identical on the card. I found that by building it, not by thinking about it, and it’s the first thing I’d fix.

Then three things would need testing with people, and not the way I tested in 2018. Those sessions asked whether someone could complete a flow. This asks whether an interface communicates a risk honestly.

Comprehension. Does the named exclusion land, or do people read “Works for 6 of 8” as good enough?
Trust calibration. Does the confidence layer change what people do, or is it decoration?
Vocabulary. The highest risk. The design assumes that choosing “coeliac” rather than “gluten free” tells the system how serious it is. If someone taps gluten free because that’s the everyday word, the hard filter never engages and the safety mechanism fails silently.
